# 3D打印嵌入件

使用3D打印制作动力传输部件（皮带轮、齿轮……）正在变得流行。但是3D打印件通常：

* 无法承受高扭矩
* 容易应力集中变形
* 尺寸不够精准

NICE 3D打印嵌入件孕育而生。采用高强度6061-T6铝合金制成，仅重3.4g，同时满足高强度需求。有效改善3D打印件应力集中的问题。

## 如何使用

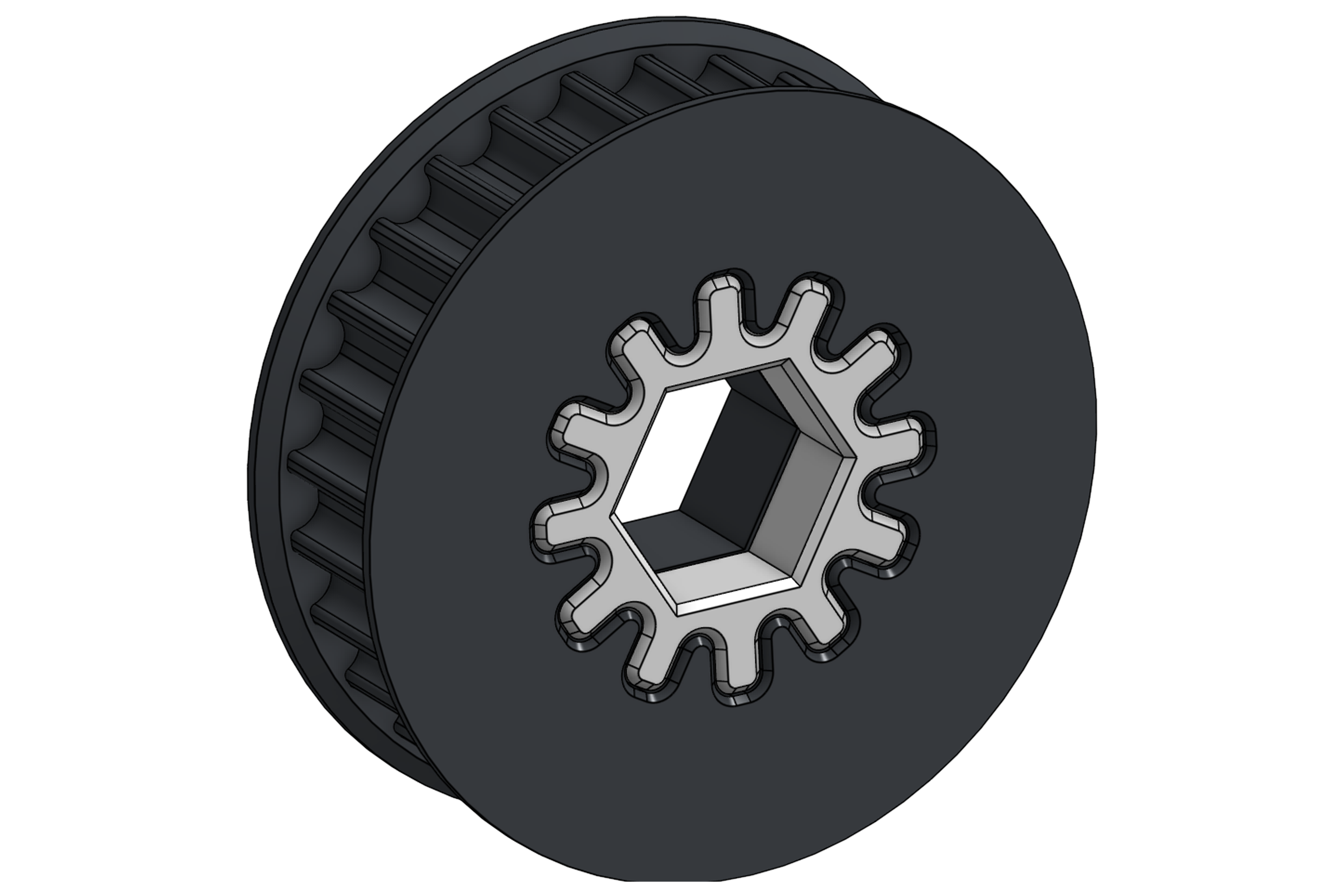

#### 皮带轮嵌入

<figure><img src="/files/NfoexTfr7iyp8fZBB2ZS" alt="" width="375"><figcaption></figcaption></figure>

配合3D打印嵌入件，有效杜绝因应力集中而产生的打印件断裂变形问题，并大幅减少了所需的填充率。

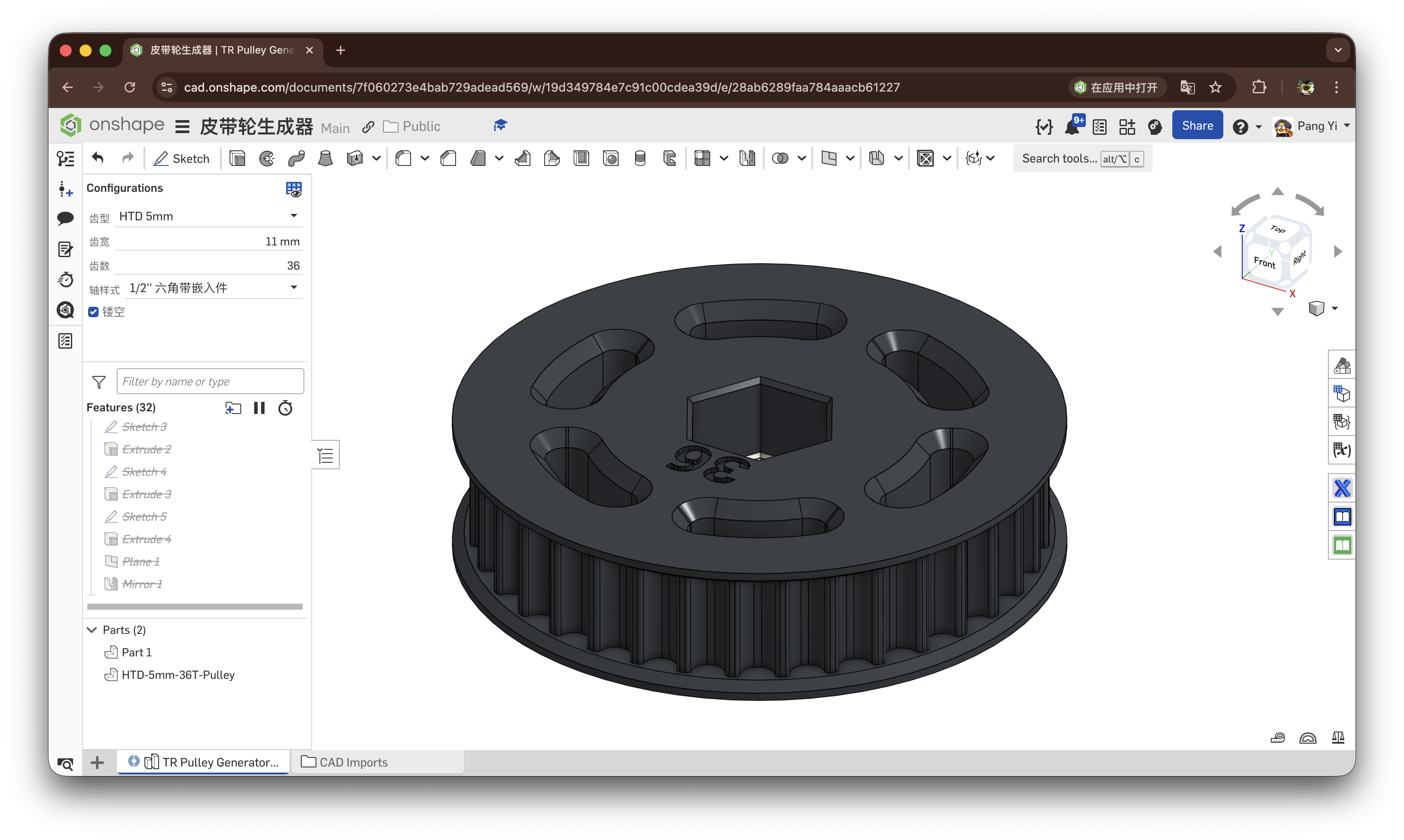

## NICE皮带轮生成器 <a href="https://cad.onshape.com/documents/7f060273e4bab729adead569/w/19d349784e7c91c00cdea39d/e/28ab6289faa784aaacb61227?configuration=Belt_Width%3D0.011%2Bmeter%3BBreaing_T%3D0.00553%2Bmeter%3BList_gjj2ZuSKOEpUZB%3DDefault%3BList_sAlfs7a70W4yCe%3DDead_Axle%3BPocket%3Dtrue%3BTeeth%3D36.0%3B____%3Dfalse%3Bbearing_OD%3D0.0247%2Bmeter&#x26;renderMode=0&#x26;uiState=696ba1bdfadd99dd2d4a66b1" class="button primary" data-icon="globe-pointer">Onshape链接</a>

<figure><img src="/files/beVCPBlbHQSLHNrUOMrs" alt=""><figcaption></figcaption></figure>

* HTD5mm/3mm齿型
* 齿宽、齿数可调
* 支持一键镂空
* 轴样式额外提供嵌入件和死轴模式

{% hint style="warning" %}
打印件的实际尺寸会随打印机、材料、打印参数等因素而有所不同，NICE皮带轮生成器的默认参数仅供参考。NICE强烈您在大批量打印前手动调整配合公差等参数。
{% endhint %}

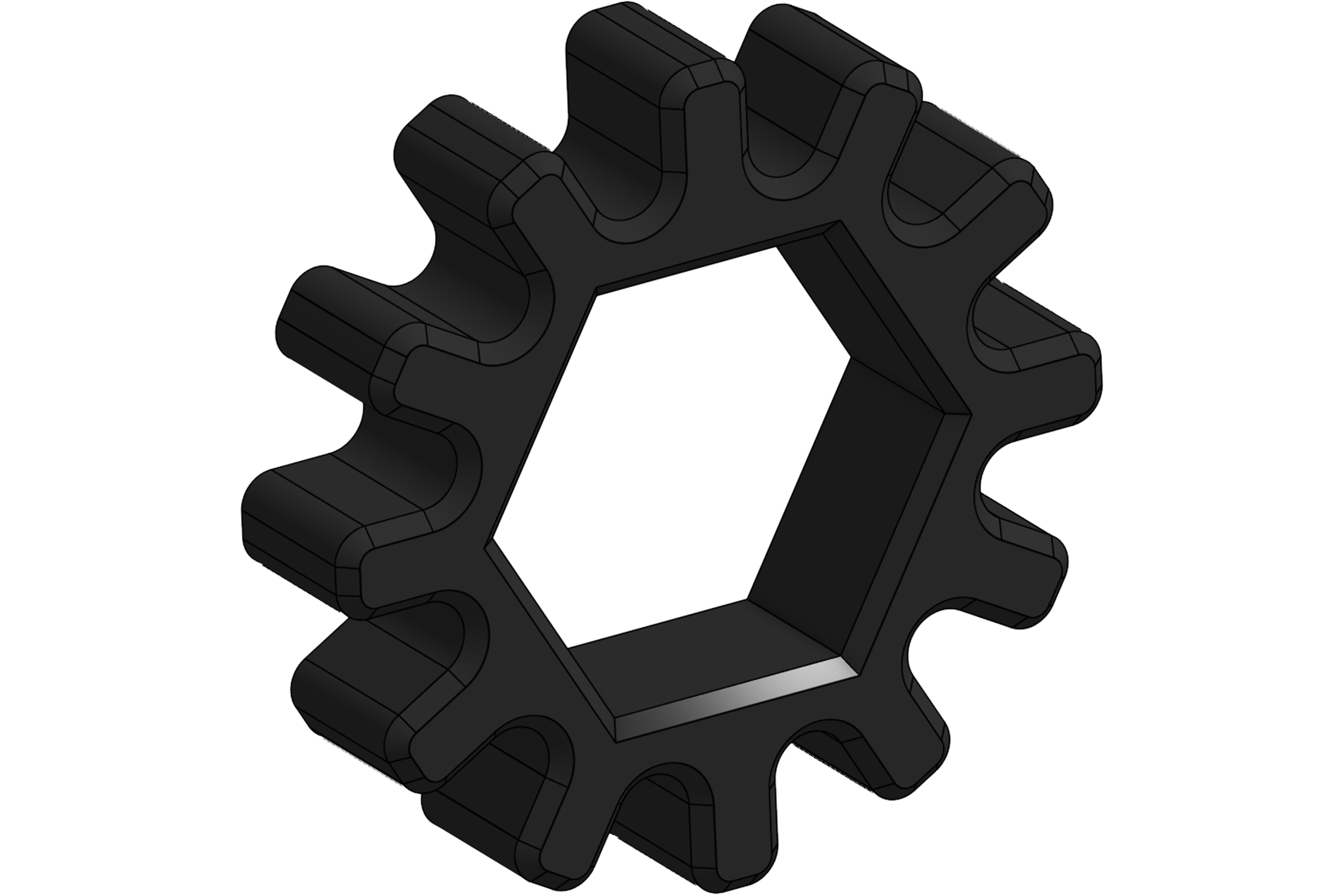

## NICE 1/2''轴用打印嵌入件 <a href="https://item.taobao.com/item.htm?id=1012638862342&#x26;mi_id=0000iTMzGn9Bda-E2gozCIBJMOiTfyOC428w1lgRQPEArEo&#x26;spm=a21xtw.29178619.0.0&#x26;xxc=shop&#x26;skuId=6015704508382" class="button primary" data-icon="bag-shopping">购买</a>

<figure><img src="/files/IOTgJfMINlbxVYEwkSWE" alt="" width="375"><figcaption></figcaption></figure>

<table><thead><tr><th width="188">SKU</th><th width="115">重量</th><th width="152.5234375">适配六角轴</th><th width="208.6015625" data-type="files">图纸</th><th width="203.6875" data-type="files">模型</th><th data-type="content-ref">Onshape</th></tr></thead><tbody><tr><td>NICE-04-03-001</td><td>3.4g</td><td>1/2inch</td><td><a href="/files/IWlZr1PPX3WfHWNkkiDl">/files/IWlZr1PPX3WfHWNkkiDl</a></td><td><a href="/files/1AiQNEY2vMR7ea1nkjAR">/files/1AiQNEY2vMR7ea1nkjAR</a></td><td></td></tr></tbody></table>


---
