# 转换套

**SplineXS 转换套**是专为 FRC 竞赛设计的高强度配件，提供稳定耐用的连接解决方案。

{% hint style="info" %}
**SplineXS 转换套**能将 SplineXS 系统与 1/2” 圆六角组件（如齿轮、皮带轮）无缝连接，避免配合不准导致的松动或性能下降。无论用于驱动系统、变速箱还是其他高负载组件，**SplineXS 转换套**都能提供精准稳定的连接，提升机器人的整体性能和可靠性。
{% endhint %}

## SplineXS 转换套 <a href="https://item.taobao.com/item.htm?id=1015950911937&#x26;mi_id=0000Tc_gZAk6iTm1oVYcqEdKhBpOH3J8FdXsHnXQshTa_B8&#x26;spm=a21xtw.29178619.0.0&#x26;xxc=shop&#x26;skuId=6190310610903" class="button primary" data-icon="bag-shopping">购买</a>

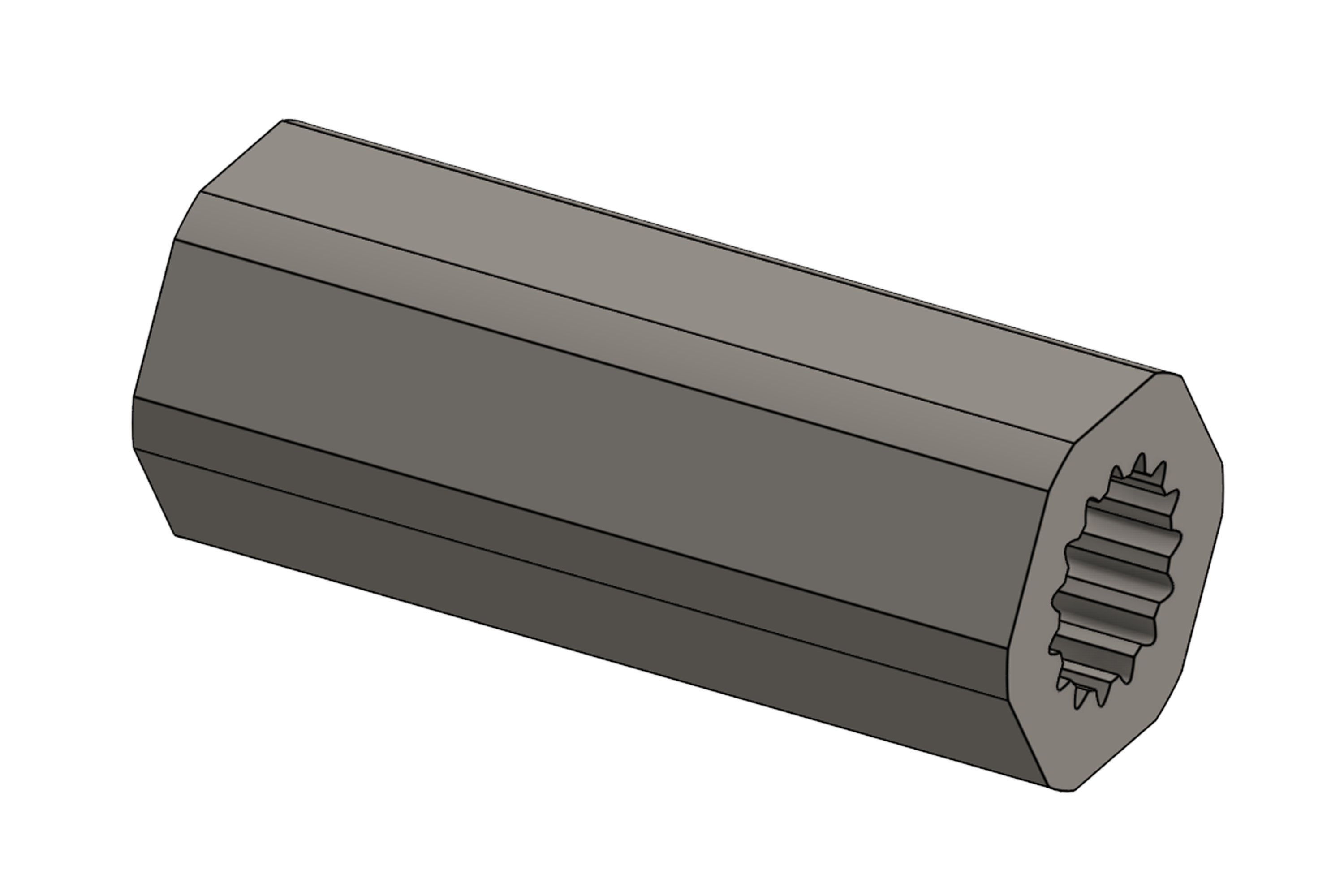

<figure><img src="/files/duPvH3uqkQEN069YCa9k" alt="" width="375"><figcaption></figcaption></figure>

* 4140钢
* 表面发黑
* 适配1/2"六角

<table><thead><tr><th width="184.5">SKU</th><th>重量</th><th width="116.5">长度</th><th width="188.84375" data-type="files">图纸</th><th width="190.77734375" data-type="files">模型</th><th>Onshape</th></tr></thead><tbody><tr><td>NICE-04-13-001</td><td>24g</td><td>31.8mm</td><td><a href="/files/344UoiDA0ItDjt84exxa">/files/344UoiDA0ItDjt84exxa</a></td><td><a href="/files/PYBdfdBlRl1f5PZfs9de">/files/PYBdfdBlRl1f5PZfs9de</a></td><td></td></tr></tbody></table>


---
